parts » andis bgr/bgr+ clipper

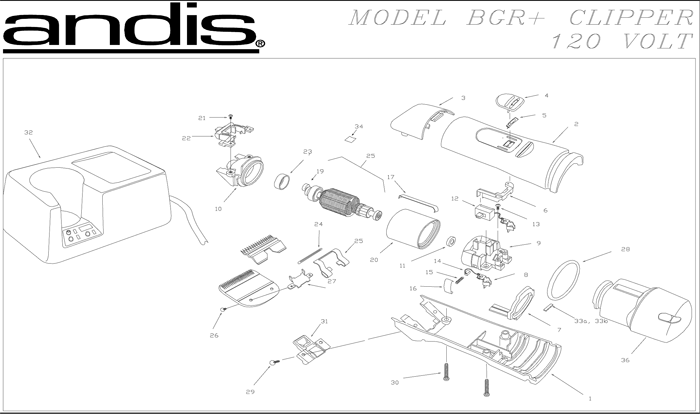

andis bgr clipper
item # part # description> qty req'd price add to cart
2 65474 UPPER HOUSING ASSEMBLY 1 $15.25
3 65267 DRIVE CAP 1 $4.95
4 64527 LOCK RING 1 $1.75
5 64508 MOTOR BATTERY CONTACTS 2 $3.25
8 21067 SMALL BEARING MOUNTING RING 1 $1.50
9 64507 SWITCH 1 $6.95
10 57993 SCREW, 5-18 x 0.375 6 $0.75
11 64503 COPPER BRUSH WITH SHUNT 2 $1.95
12 65806 BRUSH SPRING 2 $0.99
13 65805 BRUSH RETAINING CLIP 2 $0.75
14 64514 MOTOR FRAME CLIP 2 $1.50
15 64726 ARMATURE ASSEMBLY 1 $59.95
16 27251 CAM ASSEMBLY 1 $12.95
17 64529 MAGNETIZED FIELD ASSEMBLY 1 $25.95
18 15766 SCREW, 4-40 x 7/32 2 $0.95
19 S20651 BLADE DRIVE ASSEMBLY 1 $5.95
20 21068 LARGE BEARING MOUNTING RING 1 $1.95
21 64027 BLADE GUIDE 1 $1.95
22 64013 TENSION SPRING 1 $1.95
23 64139 BLADE SCREW 2 $0.75
24 64003 BLADE BRACKET 1 $3.25
25 64784 O-RING 1 $1.50
26 27864 SCREW, BLADE HINGE 2 $0.75
27 64606 HOUSING SCREW 4 $0.95
28a 28194 HINGE ASSEMBLY (OSTER 76 & 89 COMP) 1 $9.25
28b S27091 HINGE ASSEMBLY (OSTER 10, 22, 111) 1 $8.95
29a 64720 CHARGER ASSEMBLY UL 1 $127.95
30a 64754 FOAM PAD 1 $0.99
30b 65537 LEAF SPRING 1 $2.95
31 64916 OIL SEAL 1 $1.25
32 64526 POSITIVE LEAD WIRE (NOT SHOWN) 1 $0.95
33 64725 BATTERY PACK 1 $59.95
