parts » andis bgcl clipper

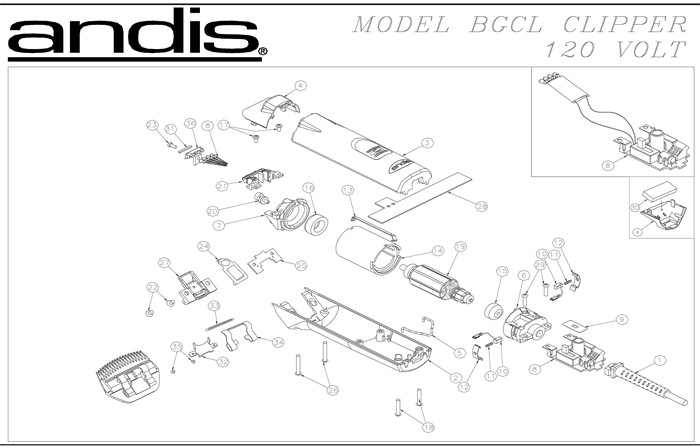

andis bgcl clipper
item # part # description> qty req'd price add to cart
4 23226 DRIVE CAP 1 $4.95
5 22267 HANGER BAIL 1 $1.95
7 65013 FRONT MOTOR FRAME 1 $4.95
9 21063 INSULATOR 1 $0.99
10 27847 CARBON BRUSH/SHUNT AND TERMINAL 2 $1.65
11 65806 BRUSH SPRING 2 $0.99
13 27198 MOTOR FRAME RETAINER CLIP 2 $1.50
15 21067 RUBBER BEARING CUP, SMALL 1 $1.50
16 21068 RUBBER BEARING CUP, LARGE 1 $1.95
17 15766 SCREW 2 $0.70
19 21977 ARMATURE ASSEMBLY (INCLUDES #20) 1 $49.95
20 27854 METAL CAM & BEARING ASSEMBLY (USA) 1 $15.95
21 S20651 BLADE DRIVE ASSEMBLY 1 $5.50
22 27861 BLADE HINGE SCREW 2 $0.75
24 64535 LOCK KEEPER 1 $2.25
25 64537 BLADE LOCK 1 $0.95
26 64606 HOUSING SCREW 2 $0.75
27 S63897 HINGE ASSEMBLY (AG2 & SUPER AG2) 1 $5.95
28 64991 OIL SEAL 1 $0.95
30 17091 HAIR SEAL 2 $1.50
32 64003 BLADE BRACKET 1 $2.55
33 64027 BLADE GUIDE 1 $1.95
35 64139 BLADE SCREW 2 $0.75
