parts » andis bgc/bgc-2 clipper

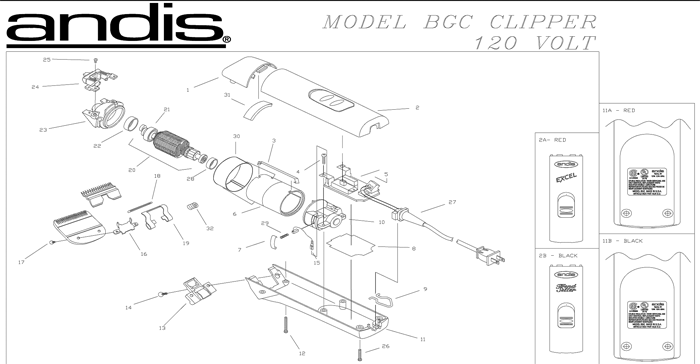

andis bgc clipper
item # part # description> qty req'd price add to cart
1a 65266 DRIVE CAP (RED) 1 $5.25
1b 65267 DRIVE CAP (BLACK) 1 $999.99
3 27198 MOTOR FRAME CLIP 1 $1.50
4 65828 SCREW 1 $0.75
5 22682 SWITCH & CIRCUIT BOARD ASSY 1 $10.25
6 27352 MAGNETIZED FIELD ASSEMBLY 1 $34.95
7 65805 BRUSH RETAINING CLIP 1 $0.75
8 64965 INSULATOR 1 $1.95
9a 22267 HANGER BAIL (for units after 7/3/03) 1 $1.95
9b 25061 HANGER BAIL (for units before 7/3/03) 1 $0.99
11a 65284 LOWER HOUSING (UL) RED 1 $9.50
12 64606 FRONT HOUSING SCREW 1 $0.95
13a 28194 HINGE ASSY (BGC & OSTER 76 & 89) 1 $9.25
13b S27091 HINGE ASSY (BGC & OSTER 10, 22, 111) 1 $8.95
14 27864 BLADE HINGE SCREW 1 $0.75
15 27847 CARBON BRUSH W/ SHUNT 1 $2.95
16 64003 BLADE BRACKET 2 $3.25
17 64139 BLADE SCREW 1 $0.75
18 64027 BLADE GUIDE 1 $1.95
19 64013 TENSION SPRING 1 $1.95
20 21977 ARMATURE ASSEMBLY 2 $52.50
21 27854 CAM & BEARING ASSEMBLY 2 $19.95
22 21068 LARGE BEARING CUP 1 $1.95
24 S20651 BLADE DRIVE ASSEMBLY 1 $5.95
25 15766 BLADE DRIVE SCREW 1 $0.95
26 22086 REAR HOUSING SCREW 1 $0.75
27 26049 CORD SET 1 $8.25
28 21067 SMALL BEARING CUP 1 $1.50
29 65806 BRUSH SPRING 1 $0.99
30 64991 OIL SEAL 1 $1.95
31 17091 SELF-ADHESIVE FOAM PAD 1 $1.95
32 22909 BLADE RETAINING SPRING 1 $1.50
