parts » andis agr animal clipper

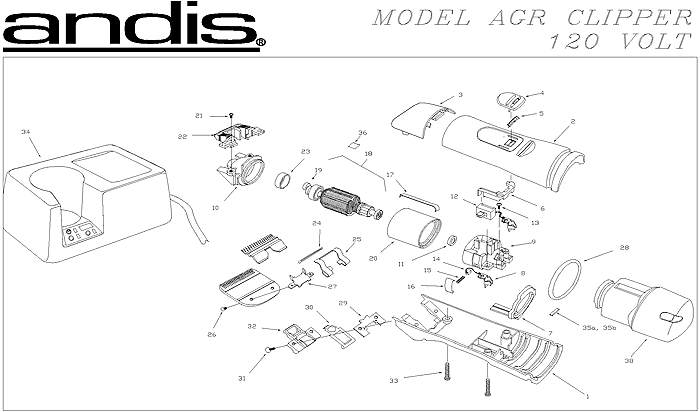

andis agr animal clipper
item # part # description> qty req'd price add to cart
3 65267 DRIVE CAP 1 $4.95
4 64902 SWITCH BUTTON 1 $2.25
5 64794 SWITCH BUTTON LOCK 1 $2.95
6 64788 SWITCH BUTTON RETAINER 1 $2.95
7 64527 LOCK RING 1 $1.75
8 64508 MOTOR BATTERY CONTACTS 2 $3.25
11 21067 SMALL BEARING MOUNTING RING 1 $1.50
12 64507 SWITCH 1 $6.95
13 57993 SCREW, 5-18 x 0.375 2 $0.75
14 64503 CARBON BRUSH WITH SHUNT 2 $1.95
15 65806 BRUSH SPRING 2 $0.99
16 65805 BRUSH RETAINER CLIP 2 $0.75
17 64514 MOTOR FRAME CLIP 2 $1.50
18 64726 ARMATURE ASSEMBLY 1 $59.95
19 27251 CAM ASSEMBLY 1 $12.95
20 64529 MAGNETIZED FIELD ASSEMBLY 1 $25.95
21 15766 SCREW, 4-40 x 7/32 2 $0.95
22 S20651 BLADE DRIVE ASSEMBLY 1 $5.95
23 21068 LARGE BEARING MOUNTING RING 1 $1.95
24 64027 BLADE GUIDE 1 $1.95
25 64013 TENSION SPRING 1 $1.95
26 64139 BLADE SCREW 2 $0.75
27 64003 BLADE BRACKET 1 $3.25
28 64784 O-RING 1 $1.50
29 64535 LOCK KEEPER 1 $2.95
30 64537 BLACK LOCK 1 $0.95
31 27864 SCREW, BLADE HINGE 2 $0.75
32 S63897 HINGE ASSEMBLY 1 $9.25
33 64606 HOUSING SCREW 4 $0.95
34a 64710 CHARGER ASSEMBLY COMPLETE (UL) 1 $109.95
35a 64754 FOAM PAD 1 $0.99
36 64916 OIL SEAL 1 $1.25
37 64526 POSITIVE LEAD WIRE (NOT SHOWN) 1 $0.95
38 64715 BATTERY PACK 1 $59.95
