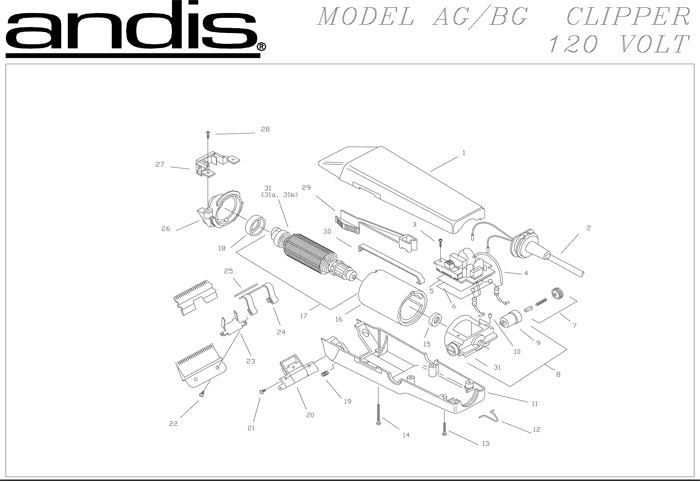

| item # |
part # |
description> |
qty req'd |
price |
add to cart |
| 1a |
20114 |
UPPER COVER (MODEL AG) |
1 |
$7.25 |
 |
1b |
27323 |
UPPER COVER (MODEL BG) |
1 |
$7.25 |
|
2a |
21790 |
CORD SET (MODEL AG 12 FEET) |
1 |
$12.95 |
|
2b |
21164 |
CORD SET (MODEL BG) |
1 |
$9.95 |
|
3 |
65828 |
SCREW |
2 |
$0.75 |
|
4 |
21366 |
SPEED CONTROL |
1 |
$7.50 |
|
5 |
21814 |
INSULATION SHEET (MYLAR) |
1 |
$0.75 |
|
6 |
21758 |
INSULATION SHEET COPACO |
1 |
$0.95 |
|
7 |
21812 |
BRUSH REPAIR KIT |
1 |
$5.95 |
|
8 |
21766 |
BRUSH HOUSING ASSEMBLY |
1 |
$16.95 |
|
10 |
21021 |
SET SCREW |
2 |
$0.95 |
|
11a |
24844 |
LOWER HOUSING (MODEL AG) |
1 |
$5.95 |
|
12 |
25018 |
HANGER BAIL |
1 |
$1.50 |
|
13 |
21050 |
REAR HOUSING SCREW |
2 |
$0.75 |
|
14 |
21048 |
FRONT HOUSING SCREW |
2 |
$0.75 |
|
15 |
21067 |
BEARING MOUNTING RING |
1 |
$1.50 |
|
16 |
27352 |
FIELD ASSEMBLY |
1 |
$34.95 |
|
17a |
27072 |
ARMATURE ASSEMBLY (W/ METAL CAM) |
1 |
$59.95 |
|
17b |
21977 |
ARMATURE ASSEMBLY (W/ PLASTIC CAM) |
1 |
$52.50 |
|
18 |
21068 |
BEARING MOUNTING RING |
1 |
$1.95 |
|
19 |
21014 |
BLADE RETAINING SPRING |
1 |
$1.50 |
|
20a |
28193 |
HINGE ASSEMBLY (MODEL AG) |
1 |
$8.95 |
|
20b |
28194 |
HINGE ASSY (MDL BG & OSTER 76 & 89 BLADE COMPATIB) |
1 |
$9.25 |
|
20c |
S27091 |
HINGE ASSY (MDL BG & OSTER 10, 22, 111 BLADE COMP) |
1 |
$8.95 |
|
20d |
S63897 |
HINGE ASSY (LOCKING) |
1 |
$9.25 |
|
21 |
27864 |
BLADE HINGE SCREW |
1 |
$0.75 |
|
22 |
64139 |
BLADE SCREW |
1 |
$0.75 |
|
23 |
64003 |
BLADE BRACKET |
1 |
$3.25 |
|
24 |
64013 |
TENSION SPRING |
1 |
$1.95 |
|
25 |
64027 |
BLADE GUIDE |
1 |
$1.95 |
|
26 |
27181 |
FRONT MOTOR FRAME ASSEMBLY |
1 |
$5.50 |
|
27 |
S20651 |
BLADE DRIVE ASSEMBLY |
1 |
$5.95 |
|
28 |
15766 |
BLADE DRIVE SCREW |
2 |
$0.95 |
|
29 |
21018 |
SWITCH ACTUATING ARM |
1 |
$2.95 |
|
30 |
27198 |
MOTOR FRAME RETAINING CLIP |
2 |
$1.50 |
|
31a |
27251 |
CAM ASSEMBLY - METAL |
1 |
$12.95 |
|
31b |
27854 |
CAM ASSEMBLY - PLASTIC |
1 |
$19.95 |
|
32 |
64537 |
BLADE LOCK |
1 |
$0.95 |
|
33 |
64535 |
LOCK KEEPER |
1 |
$2.95 |
|
