parts » andis ag animal clipper

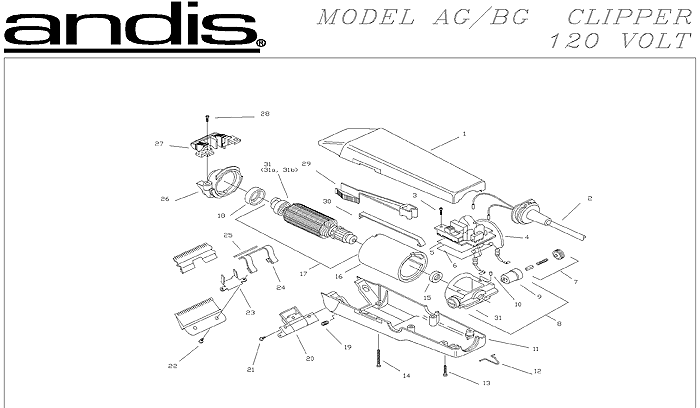

andis ag animal clipper
item # part # description> qty req'd price add to cart
1a 20114 UPPER COVER (MODEL AG) 1 $7.25
1b 27323 UPPER COVER (MODEL BG) 1 $7.25
2a 21790 CORD SET (MODEL AG 12 FEET) 1 $12.95
2b 21164 CORD SET (MODEL BG) 1 $9.95
3 65828 SCREW 2 $0.75
4 21366 SPEED CONTROL 1 $7.50
5 21814 INSULATION SHEET (MYLAR) 1 $0.75
6 21758 INSULATION SHEET COPACO 1 $0.95
7 21812 BRUSH REPAIR KIT 1 $5.95
8 21766 BRUSH HOUSING ASSEMBLY 1 $16.95
10 21021 SET SCREW 2 $0.95
11a 24844 LOWER HOUSING (MODEL AG) 1 $5.95
12 25018 HANGER BAIL 1 $1.50
13 21050 REAR HOUSING SCREW 2 $0.75
14 21048 FRONT HOUSING SCREW 2 $0.75
15 21067 BEARING MOUNTING RING 1 $1.50
16 27352 FIELD ASSEMBLY 1 $34.95
17a 27072 ARMATURE ASSEMBLY (W/ METAL CAM) 1 $59.95
17b 21977 ARMATURE ASSEMBLY (W/ PLASTIC CAM) 1 $52.50
18 21068 BEARING MOUNTING RING 1 $1.95
19 21014 BLADE RETAINING SPRING 1 $1.50
20a 28193 HINGE ASSEMBLY (MODEL AG) 1 $8.95
20b 28194 HINGE ASSY (MDL BG & OSTER 76 & 89 BLADE COMPATIB) 1 $9.25
20c S27091 HINGE ASSY (MDL BG & OSTER 10, 22, 111 BLADE COMP) 1 $8.95
20d S63897 HINGE ASSEMBLY (LOCKING) 1 $9.25
21 27864 BLADE HINGE SCREW 1 $0.75
22 64139 BLADE SCREW 1 $0.75
23 64003 BLADE BRACKET 1 $3.25
24 64013 TENSION SPRING 1 $1.95
25 64027 BLADE GUIDE 1 $1.95
26 27181 FRONT MOTOR FRAME ASSEMBLY 1 $5.50
27 S20651 BLADE DRIVE ASSEMBLY 1 $5.95
28 15766 BLADE DRIVE SCREW 2 $0.95
29 21018 SWITCH ACTUATING ARM 1 $2.95
30 27198 MOTOR FRAME RETAINING CLIP 2 $1.50
31a 27251 CAM ASSEMBLY - METAL 1 $12.95
31b 27854 CAM ASSEMBLY - PLASTIC 1 $19.95
32 64537 BLADE LOCK 1 $0.95
33 64535 LOCK KEEPER 1 $2.95
